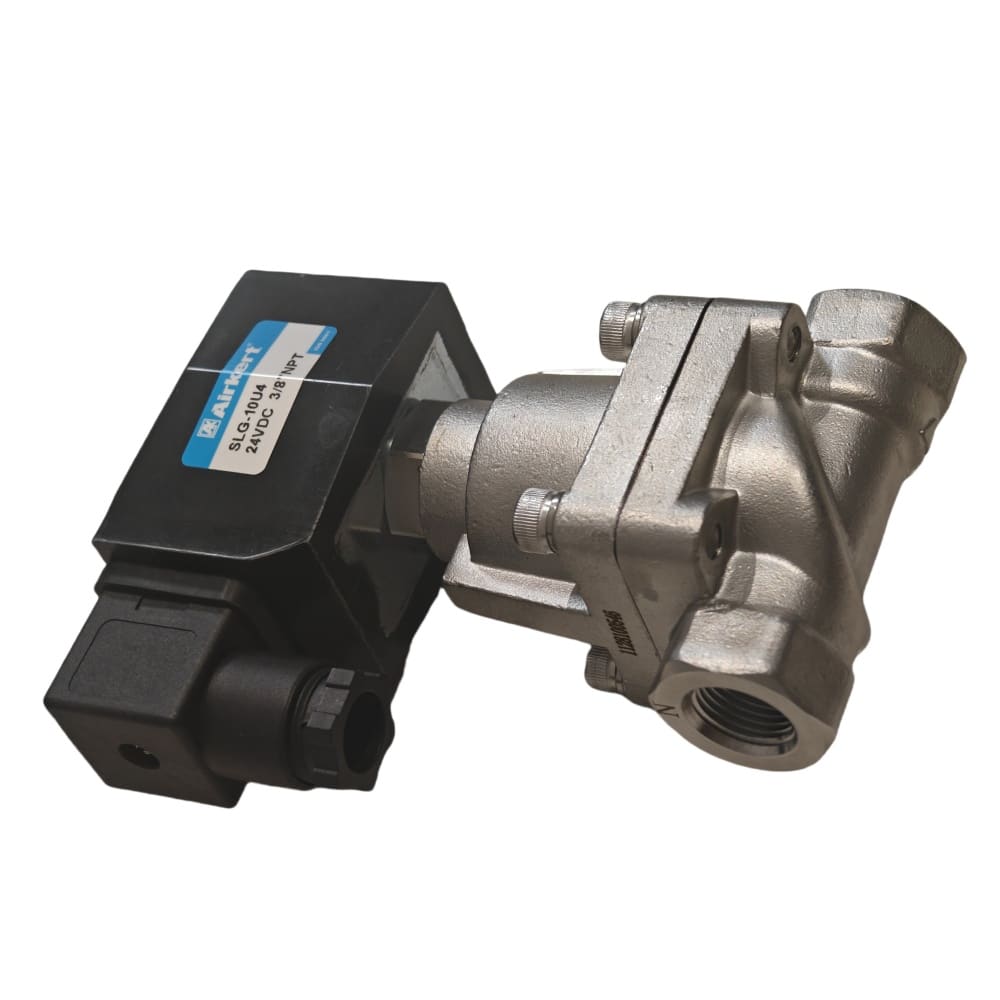

3/8″ 1/2″ 3/4″ 1″ Size 50 Bar 800 PSI High Pressure Solenoid Valve
SLG5 Series 2/2 Way Stainless Steel SS304 Body Material, 3/8″, 1/2″, 3/4″ and 1″ Port Size round valve body type, 50 bar, 5 MPa, 800 PSI High-Pressure solenoid valve, anti-corrosion, suitable for gas pipeline, hydrogen and nitrogen control, washing system, dust cleaning, dust blowing systems, long-lasting, high performance, durable, ultra-high pressure resistance.
Features:
1. SLG5 series 2/2 way solenoid valve
2. Port Sizes: 3/8″ 1/2″ 3/4″ 1″
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SUS304
5. Seal options: PTFE PEEK
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each solenoid valve will be tested individually before shipment, including for functionality and leakage.
2. Port Sizes: 3/8″ 1/2″ 3/4″ 1″
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SUS304
5. Seal options: PTFE PEEK
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each solenoid valve will be tested individually before shipment, including for functionality and leakage.
8. Normally Closed. N/C Type. Normally Open Optional.
Pressure: 50 bar, 5mPa, 800 PSI
Fluid Media: Gas, Air, Water, Liquid Oil.
Fluid Media: Gas, Air, Water, Liquid Oil.

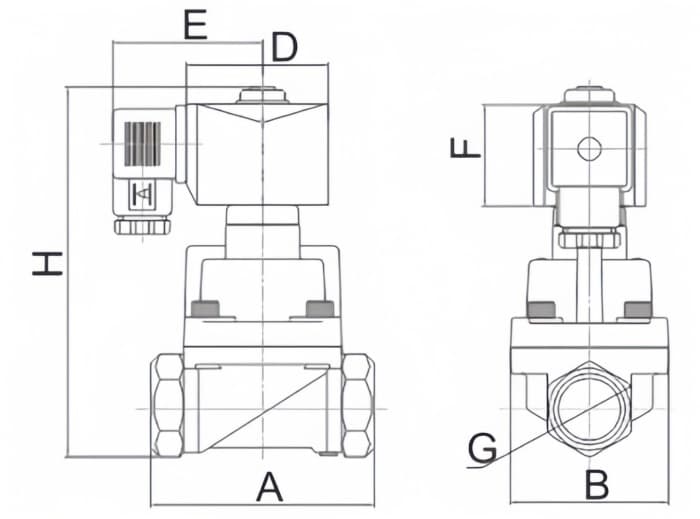

| Orifice (mm) | Pipe Size (G/NPT) | Length (A) | Width (B) | Height (H) |
|---|---|---|---|---|
| Φ15 | 3/8″ | 75 | 52 | 130 |
| Φ15 | 1/2″ | 75 | 52 | 130 |
| Φ20 | 3/4″ | 85 | 60 | 141 |
| Φ25 | 1″ | 100 | 70 | 148 |
| Port Size | Orifice | CV | Max Pressure (Bar) | Power Consumption | Coil | |||
|---|---|---|---|---|---|---|---|---|
| (inch) | (mm) | Factor | AC | DC | AC(VA) | AC(W) | DC(W) | Type |
| 3/8″ | 15 | 4.2 | 75 | 55 | 33 | 25 | 25 | DIN |
| 1/2″ | 15 | 4.2 | 75 | 55 | 33 | 25 | 25 | DIN |
| 3/4″ | 20 | 7 | 65 | 50 | 33 | 25 | 25 | DIN |
| 1″ | 25 | 11 | 55 | 45 | 33 | 25 | 25 | DIN |
