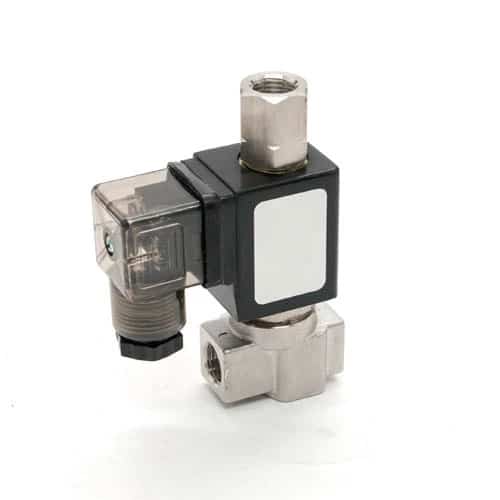

3/2 3-Way Stainless Steel / Brass Solenoid Valve
This compact 2/3-way direct-acting solenoid valve features a highly responsive mechanism and a standard encapsulated waterproof coil with IP65 protection. Designed for reliable performance, it is ideal for use in various control systems, testing equipment, and automated processes. Available in DN1.5–3 mm orifices with 1/8″–1/4″ ports, it can operate under pressures ranging from 0 to 16 bar, providing versatility for different applications.
2/3-Way Solenoid Valve
-
Structure: Compact direct-acting design, sensitive response
-
Coil: Standard encapsulated waterproof coil, protection class IP65
-
Application: Suitable for control systems and testing equipment
Technical Specifications
-
Type: 2/3-way
-
Operation Mode: Direct-acting
-
Orifice Size: DN1.5 ~ 3 mm
-
Port Size: 1/8″ ~ 1/4″
-
Working Pressure: 0 ~ 16 bar
Body material:Â Stainless Steel / Brass
Pipe size: 1/8″, 1/4″
Fluid Media: Air, gases, oil, non-corrosive liquids, water.
Model: AV23, AV23S

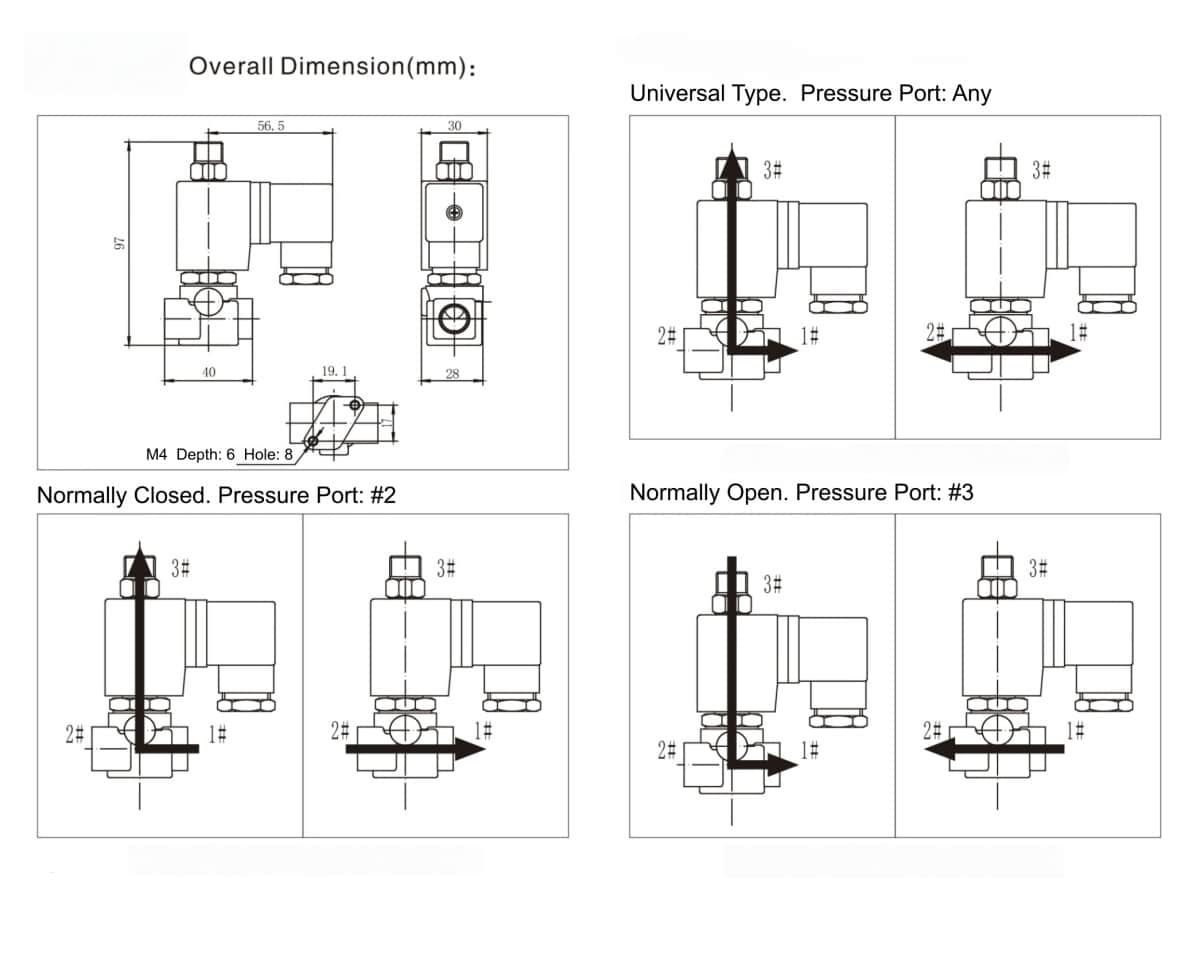

| Pipe | Orifice | CV value | Max Work Pressure(bar) | Power | Weight (KG) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC | DC | AC(50Hz) | DC | ||||||||||
| Bottom | Top | Air | Water | Oil | Air | Water | Oil | VA | W | W | |||
| Normally Closed | |||||||||||||
| 1/8″ 1/4″ |
1.5 | 1.5 | 0.07 | 16 | 16 | 13 | 16 | 16 | 13 | 20 | 12 | 12 | 0.45 |
| 2.5 | 1.5 | 0.21 | 7 | 7 | 5 | 7 | 7 | 5 | 0.45 | ||||
| 3 | 1.5 | 0.23 | 5 | 5 | 3 | 5 | 5 | 3 | 0.45 | ||||
| Normally Open | |||||||||||||
| 1/8″ 1/4″ |
1.5 | 1.5 | 0.07 | 16 | 16 | 13 | 16 | 16 | 13 | 20 | 12 | 12 | 0.45 |
| 2.5 | 1.5 | 0.21 | 16 | 16 | 13 | 16 | 16 | 13 | 0.45 | ||||
| 3 | 1.5 | 0.23 | 16 | 16 | 13 | 16 | 16 | 13 | 0.45 | ||||
| Universal | |||||||||||||
| 1/8″ 1/4″ |
1.5 | 1.5 | 0.07 | 10 | 10 | 7 | 10 | 10 | 7 | 20 | 12 | 12 | 0.45 |
| 2.5 | 1.5 | 0.21 | 5 | 5 | 4 | 5 | 5 | 4 | 0.45 | ||||
| 3 | 1.5 | 0.23 | 4 | 4 | 3 | 4 | 4 | 3 | 0.45 | ||||
