700 Bar ultra high pressure solenoid valve

Size 1/8″ to 2″ 100 Bar to 1000 Bar  Customized High Pressure Solenoid Valve

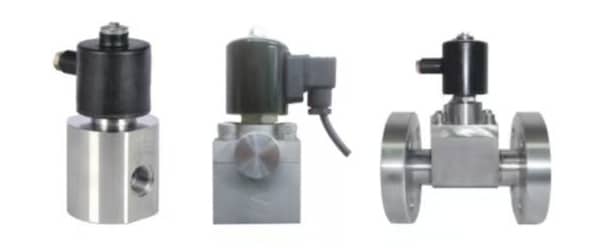

ZCAG Series 2/2 Way Stainless Steel SS304 SS316 Body Material, 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ Port Size round valve body type. 100 bar 150 bar, 200 bar, 250 bar, 300 bar, 400 bar high pressure level, 450 bar, 500 bar, 700 bar, 800 bar, 900 bar, 1000 bar, up to 100 MPa, 15000 PSI Super High-Pressure solenoid valve, anti-corrosion, suitable for gas pipeline, hydrogen and nitrogen control, washing system, dust cleaning, dust blowing systems, long-lasting, high performance, durable, ultra-high pressure resistance.

Features:

1. ZCAG series 2/2 way solenoid valve
2. Port Sizes: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
3. Thread Standard: G, BSP, NPT, Flange, Welding
4. Materials: Stainless Steel, SS304, SUS316
5. Seal options: PTFE, Copper, Fluororubber, Hard Seal, Imported Materials
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each solenoid valve will be tested individually before shipment, including for functionality and leakage.
8. Normally Closed. N/C Type. Normally Open Optional.
9. Medium Temperature: -196℃~600℃ (customizable upon request)
10. Valve Core Structure: Piston Type
11. Protection Level: Standard IP54, Explosion-proof IP65
12. Rated Power: For diameter ≥10mm and pressure ≥250bar, DC is 60W, others are 25W
13. The standard is a female thread; the flange, including both male and female flanges, as well as welding, are customizable.
Pressure: 100 bar to 1000 bar, 10 MPa to 100 MPa, 1500 PSI to 15000 PSI
Fluid Media: Gas, Air, Water, Liquid Oil.

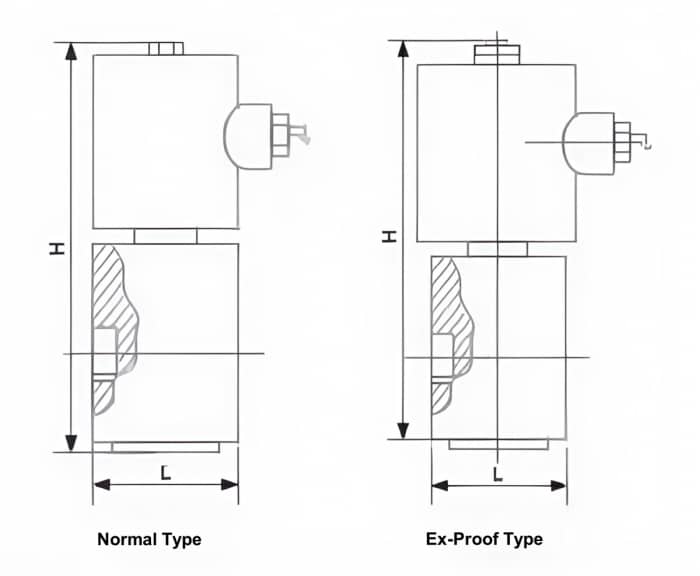

ZCAG solenoid valve size
Model Port Size Orifice
(mm)		 Cv L H
Normal		 H
Ex-Proof		 Differential Pressure （bar) Max Pressure
High Pressure Super High High Super High
ZCAG1 1/8 1 0.02 44 115 140 5 10 70bar
100bar
150bar
200bar
250bar
300bar
400bar		 450bar
500bar
700bar
800bar
900bar
1000bar
ZCAG2 1/8 1/4 2 0.02 44 115 140 5 10
ZCAG3 1/8 1/4 3 0.08 44 173 198 5 10
ZCAG5 1/8 1/4 5 0.16 57 173 198 5 10
ZCAG6 1/4 6 0.32 57 173 198 5 10
ZCAG8 1/4 8 0.54 57 173 198 5 10
ZCAG10 3/8 10 0.8 57 173 198 5 10
ZCAG15 1/2 15 1.4 73 186 186 5 10
ZCAG20 3/4 20 2.8 80 198 198 5 10
ZCAG25 1 25 5.0 90 224 224 5 10
ZCAG32 11/4 32 24 106 285 285 10 20
ZCAG40 11/2 40 29 123 315 315 10 20
ZCAG50 2 50 48 154 352 352 10 20

Note:

1. This series of products is non-standard, the relevant parameters and dimensions are for reference only, the actual product shall prevail according to the order agreement;

2. The interface dimensions and overall dimensions in the above table are for reference only for high-voltage groups. Please consult separately for ultra-high-voltage groups.
