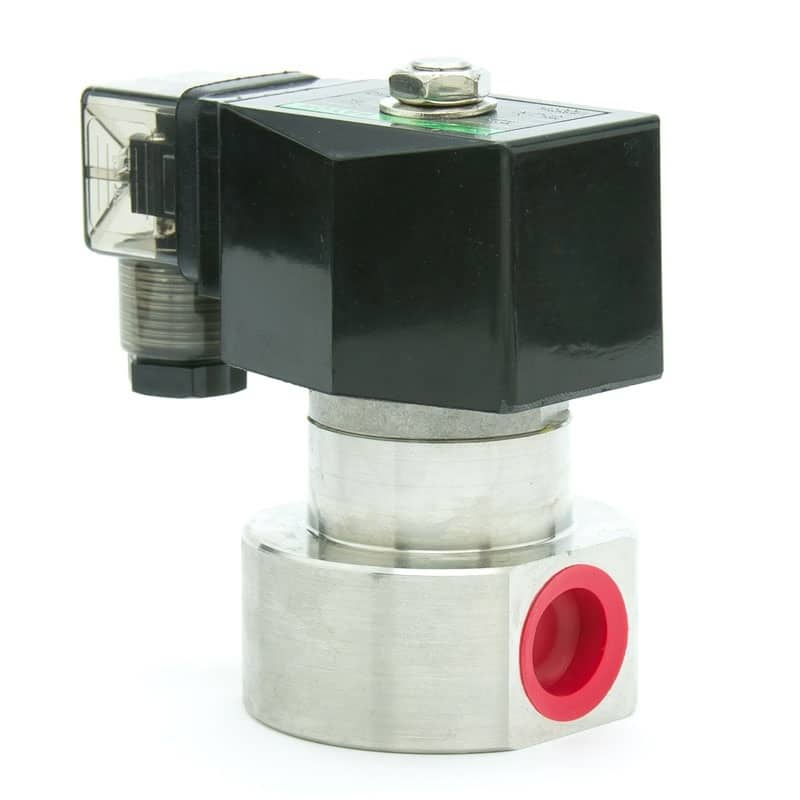

3/8" 1/2" Size 100 Bar 1500 PSI High Pressure Solenoid Valve
AMZ1 Series 2/2 Way Stainless Steel SS304 SUS304 Body Material, 3/8" and 1/2" Port Size Miniature type, 100 bar,10 MPa, 1500 PSI high-pressure Ultra High-Pressure solenoid valve, anti-corrosion, suitable for washing system, dust cleaning, dust blowing systems, long-lasting, high performance, durable, ultra-high pressure resistance.
Features:
1. AMZ1 series 2/2 way solenoid valve
2. Port Sizes: 3/8" 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SUS304
5. Seal options: PTFE PEEK
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each solenoid valve will be tested individually before shipment, including for functionality and leakage.
2. Port Sizes: 3/8" 1/2"
3. Thread Standard: G, BSP, NPT
4. Materials: Stainless Steel, SS304, SUS304
5. Seal options: PTFE PEEK
6. Voltages: 12vDC, 24vDC, 48vDC, 110vAC, 220vAC
7. Quality: Each solenoid valve will be tested individually before shipment, including for functionality and leakage.
8. Normally Closed. N/C Type. Normally Open Optional.
Pressure: 100 bar, 10 mPa, 1500PSI
Fluid Media: Air, Water, Liquid Oil.
Fluid Media: Air, Water, Liquid Oil.
| Port Size | Orifice | CV | Max Pressure (Bar) | Power Consumption | Coil | |||
|---|---|---|---|---|---|---|---|---|
| (inch) | (mm) | Factor | AC | DC | AC(VA) | AC(W) | DC(W) | Type |
| 3/8" | 10 | 1.8 | 100 | 70 | 39 | 24 | 25 | DIN |
| 1/2" | 10 | 1.8 | 100 | 70 | 39 | 24 | 25 | DIN |
