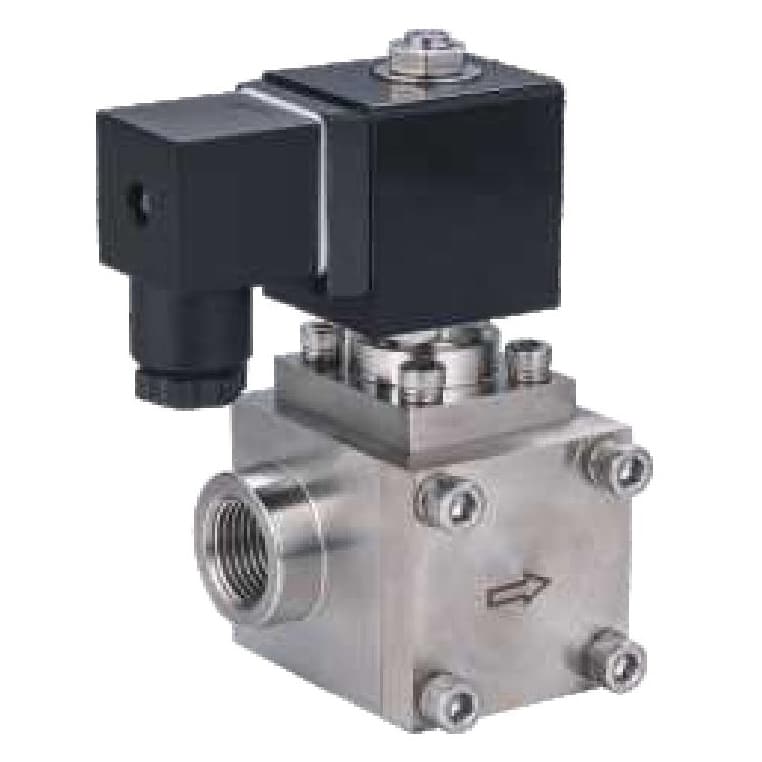

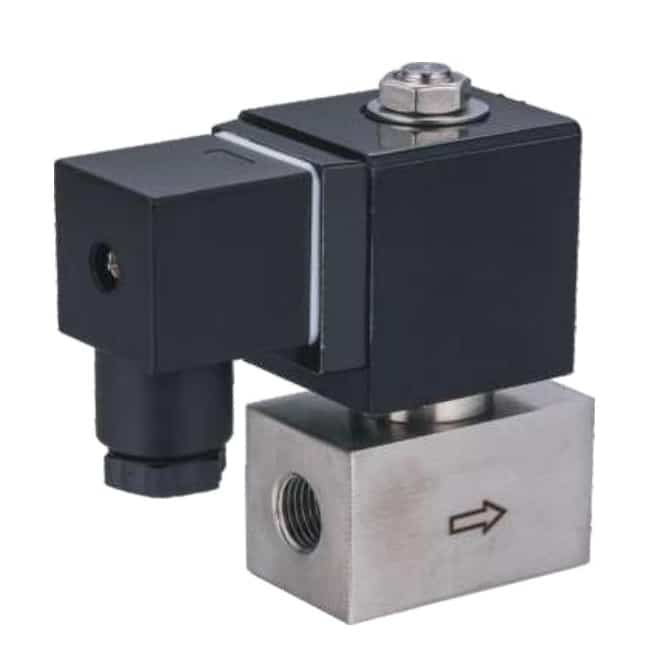

AMGHP Series 2000 PSI 160 Bar Normally Closed / Normally Open Pilot High-Pressure Solenoid Valve
AMGHP Series 2000 psi 160 bar solenoid valve is a 2/2-way normally closed and normally open type pilot operated type, designed for reliable switching under high-pressure conditions. Manufactured with SS304 SS316 stainless steel, it offers excellent corrosion resistance and durability for long-term use. The valve opens when energized and remains tightly sealed when power is off, providing stable and efficient control for water, oil, gas, steam and industrial fluids. Low power consumption, compact size and large flow capacity make it suitable for systems requiring fast response and continuous performance.
Engineered to withstand pressures up to 160 bar, this 160 bar solenoid valve is ideal for demanding applications in hydraulic equipment, chemical systems, energy plants, high-pressure cleaning machinery, and industrial automation. Multiple sealing options, including PTFE and PEEK ensure compatibility with different fluids and temperatures (0°C–110°C). Installation is flexible in any direction, with vertical mounting recommended for optimal operating efficiency.
-
Type: 2/2-Way
-
Body Material: SS304 SS316 Stainless Steel
-
Working Pressure: 160 Bar / 2000 PSI Normally Closed N/C, 40 to 50 Bar Normally Open N/O
-
Orifice Size: Â 6mm, 8mm, 10mm, 15mm, 20mm, 25mm
-
Pipe Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
-
Fluid Media: Air, Water, Gas, Oil, other liquids.
Applications: cleaning systems, food machinery, burners, welding and cutting equipment, fire protection systems, environmental water treatment, and general mechanical manufacturing
How to order
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|
| Series | Port Size | Voltage | Seal Material | Orifice (mm) | Body Material | Operation | Coil Type | Thread Standard |
| AMGHP | 02 | U2 | N | 6L | S1 | C | D | N |
| 06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ | U1: 110VAC U2: 220VAC U3: 380VAC U4: 24V DC U5: 12V DC U6: 36V AC U7: 24V AC | N: NBR V: VITON E: EPDM T: PTFE | 2L: 2.0 6L: 6.0 8L: 8.0 10L: 10 15L: 15 20L: 20 25L: 25 |
B: Brass S1: SS316 S2: SS304 NY: Nylon UP: UPVC | C: Normally Closed O: Normally Open | D: DIN Standard W: Lead Wire X: EX-Proof A: Water-Proof | B: BSP G: G N: NPT |
Dimensions
| Model | A | B | C | X | Y | 2-M |
|---|---|---|---|---|---|---|
| AMGHP-06 | 50 | 30 | 86 | |||
| AMGHP-08 | 50 | 30 | 86 | |||
| AMGHP-10 | 60 | 55 | 109 | 34 | 28 | M5 |
| AMGHP-15 | 70 | 65 | 119 | 38 | 38 | M6 |
| AMGHP-20 | 80 | 74 | 124 | 42 | 42 | M6 |
| AMGHP-25 | 90 | 87 | 134 | 48 | 48 | M8 |
Technical Data Sheet
| Specification | |||||||
|---|---|---|---|---|---|---|---|
| Model | AMGHP-06EV | AMGHP-08EV | AMGHP-10EV | AMGHP-15EV | AMGHP-20EV | AMGHP-25EV | |
| Working Medium | Liquid,Air,Light oil | ||||||
| Motion Pattern | Pilot-operated | ||||||
| Joint Pipe Bore | 1/8″ | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | |
| Orifice (mm) | 6 | 8 | 10 | 15 | 20 | 25 | |
| CV Value | 0.7 | 0.9 | 3.5 | 4.7 | 7.0 | 11 | |
| Material of Body | Stainless steel | ||||||
| Working- pressure (kgf/cm²) |
Normal Close Type |
AC220V:2~160 | AC220V:2~160 | AC220V:6~160 | AC220V:6~160 | AC220V:6~160 | AC220V:6~160 |
| DC24V:2~80 | DC24V:2~80 | DC24V:6~160 | DC24V:6~160 | DC24V:6~160 | DC24V:6~160 | ||
| Normal Open Type |
AC220V/DC24V: 2~40 |
AC220V/DC24V: 2~40 |
AC220V/DC24V: 6~50 |
AC220V/DC24V: 6~50 |
AC220V/DC24V: 6~50 |
AC220V/DC24V: 6~50 |
|
| Operation Fluid Viscosity | ≤20cst | ||||||
| Operating Temperature Range | -10~80 deg C | ||||||
| Material of Oil Seal | (PTFE) | ||||||
| Weight (KG) | 0.6 | 0.55 | 1.5 | 1.8 | 2.1 | 2.6 | |
